DingTalk

1. Obtain DingTalk Credentials

1. Create an Organization

No materials required, similar operation on mobile and desktop:

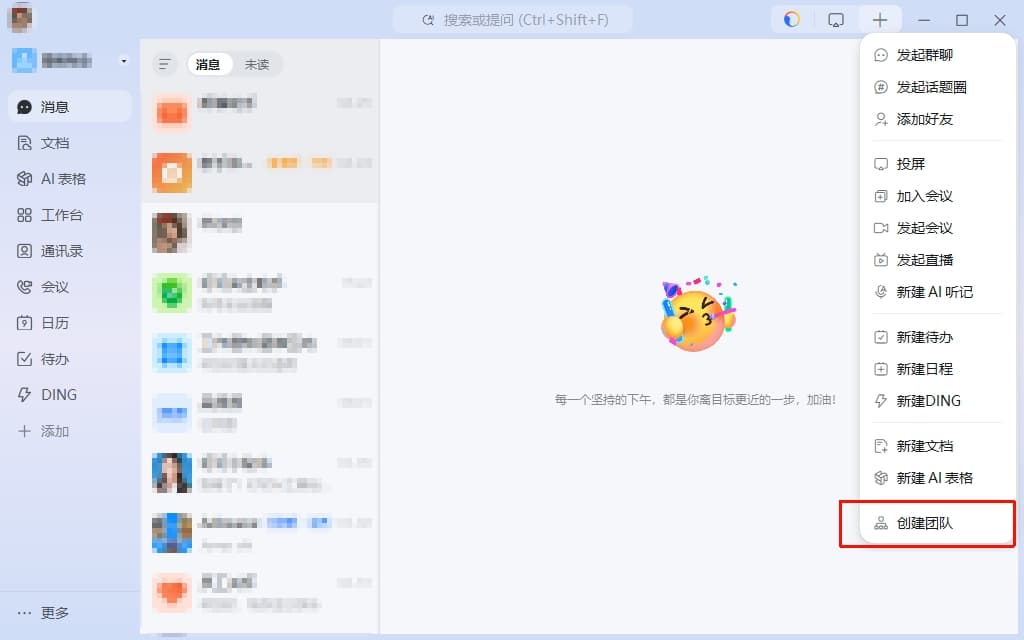

Click "Create Team" in the top right corner of DingTalk

Create or Join Organization Button

Select "Enterprise"
Select "Create Enterprise/Team"

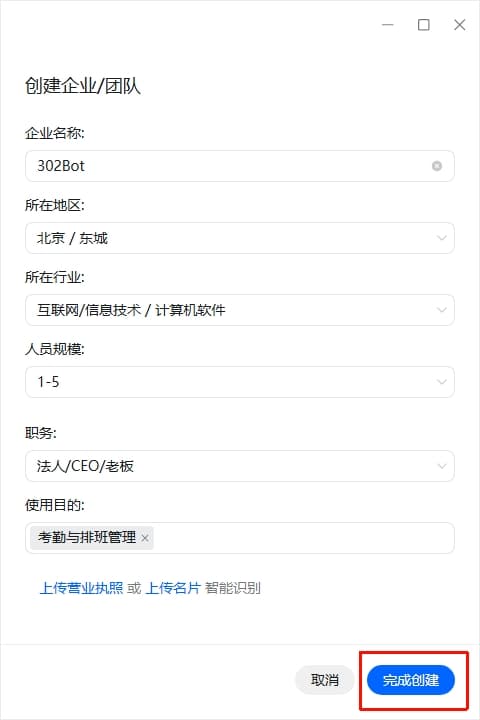

Fill in the organization information

Organization Information Form

2. Log in to Developer Platform

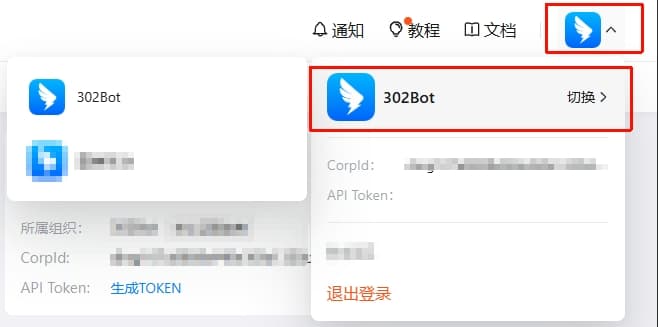

Visit DingTalk Open Platform, click on the avatar in the top right corner to switch to the organization you just created.

Switch Organization

3. Create an Application

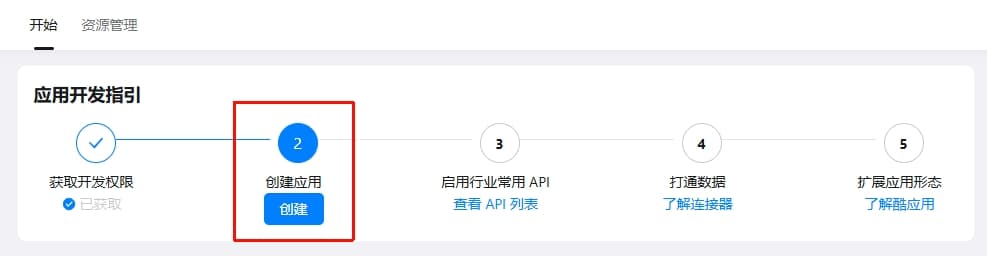

Click "Create Application" on the homepage:

Create Application Button

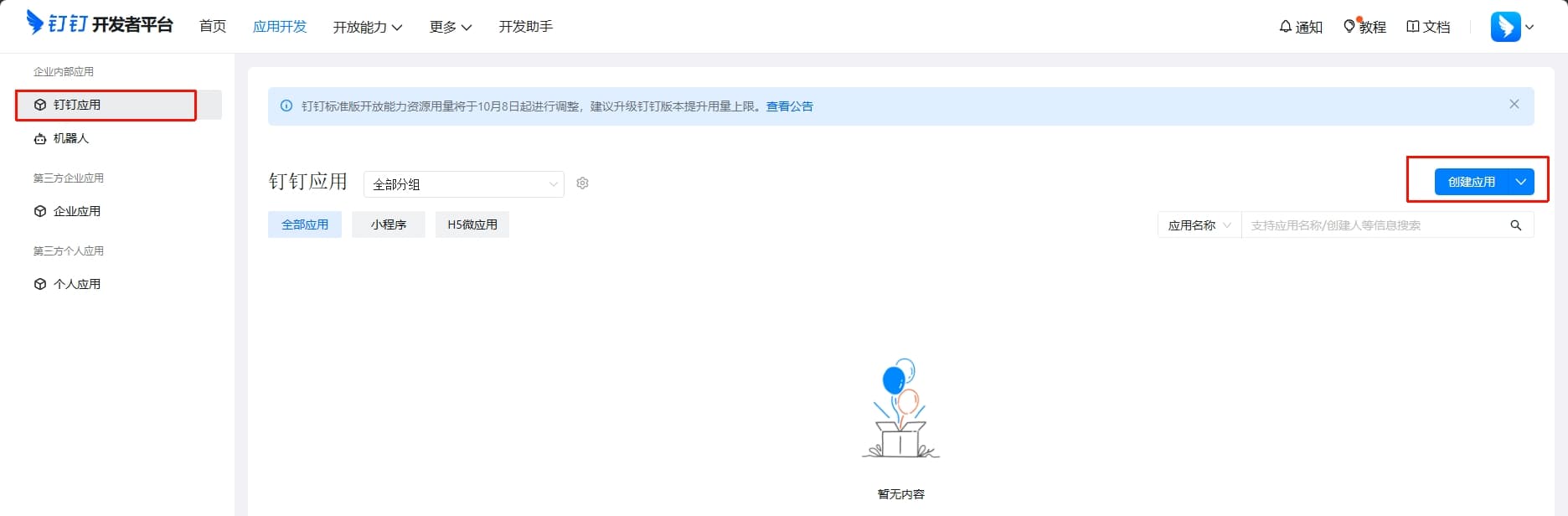

Application Type Selection

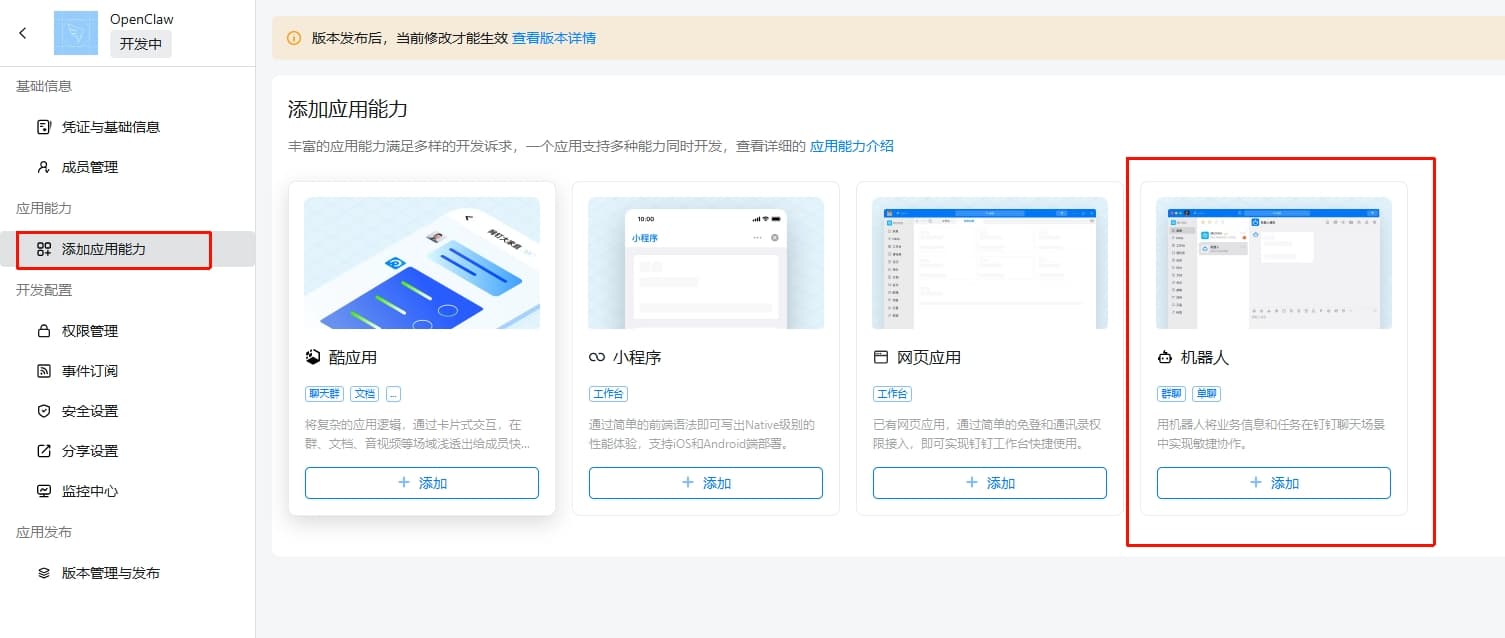

Application Creation Form

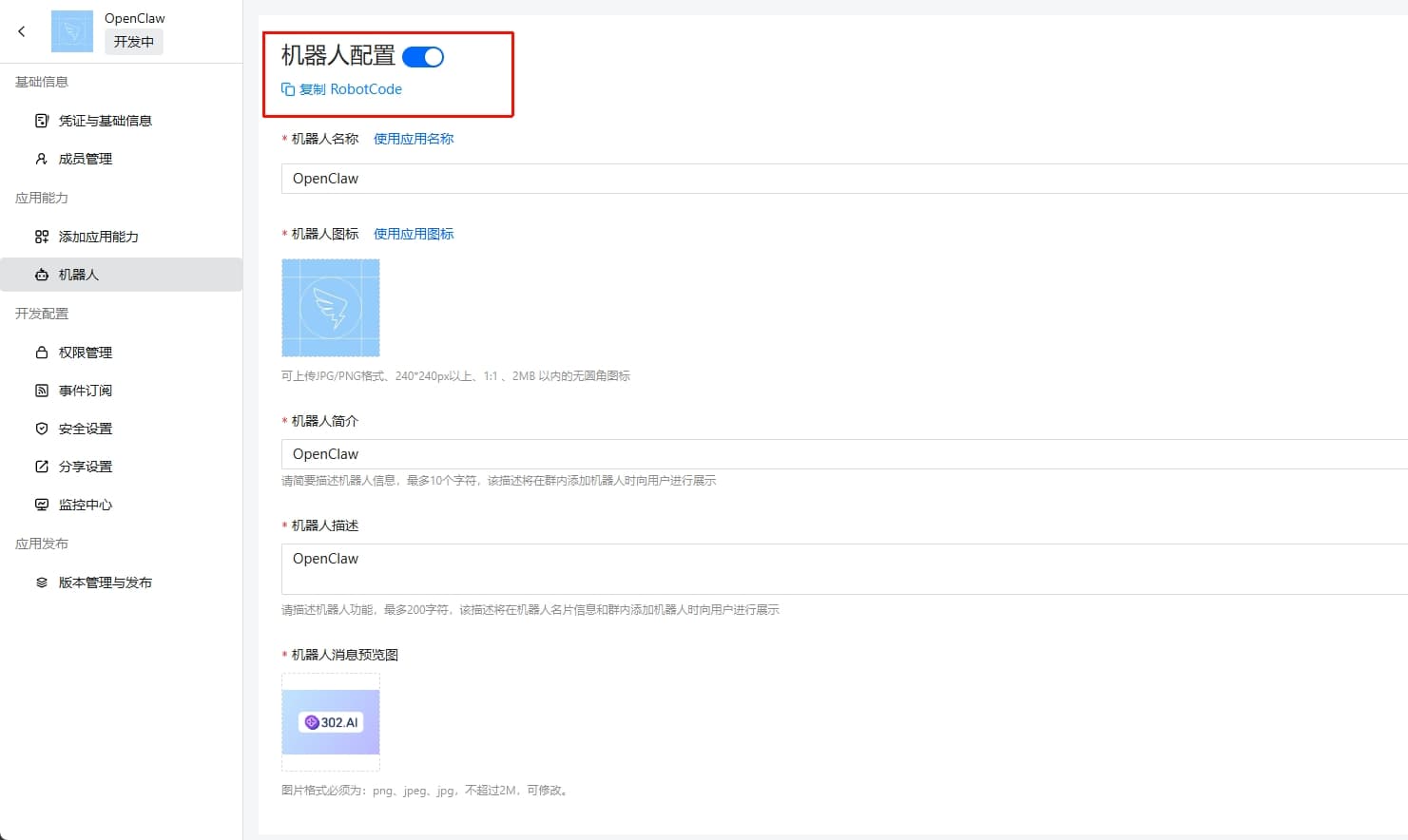

Fill in the application information and click "Publish":

Application Publish

4. Obtain `Client ID` and `Client Secret`

Get the credentials on the application details page, then sync the Client ID and Client Secret into your 302 AI Studio configuration.

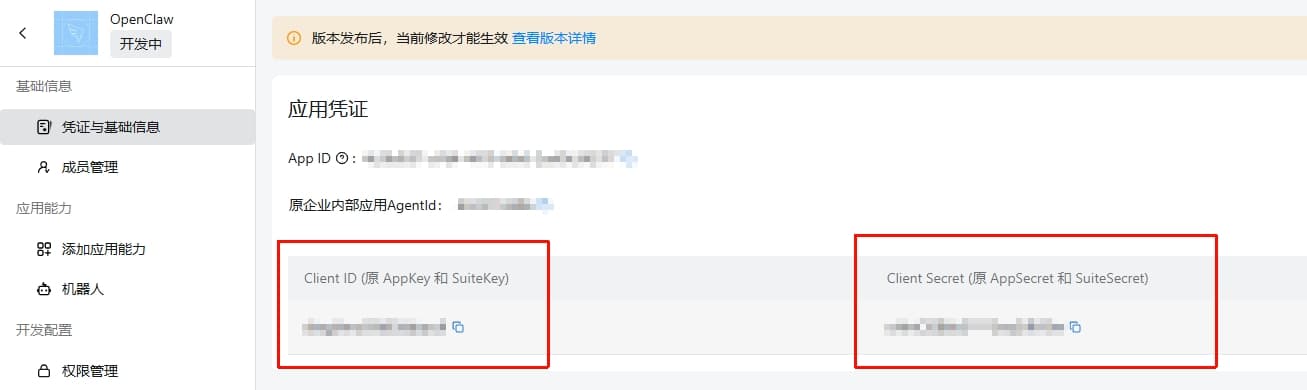

Get Credentials

5. Publish Version

Only after publishing a version can the bot be found in DingTalk search.

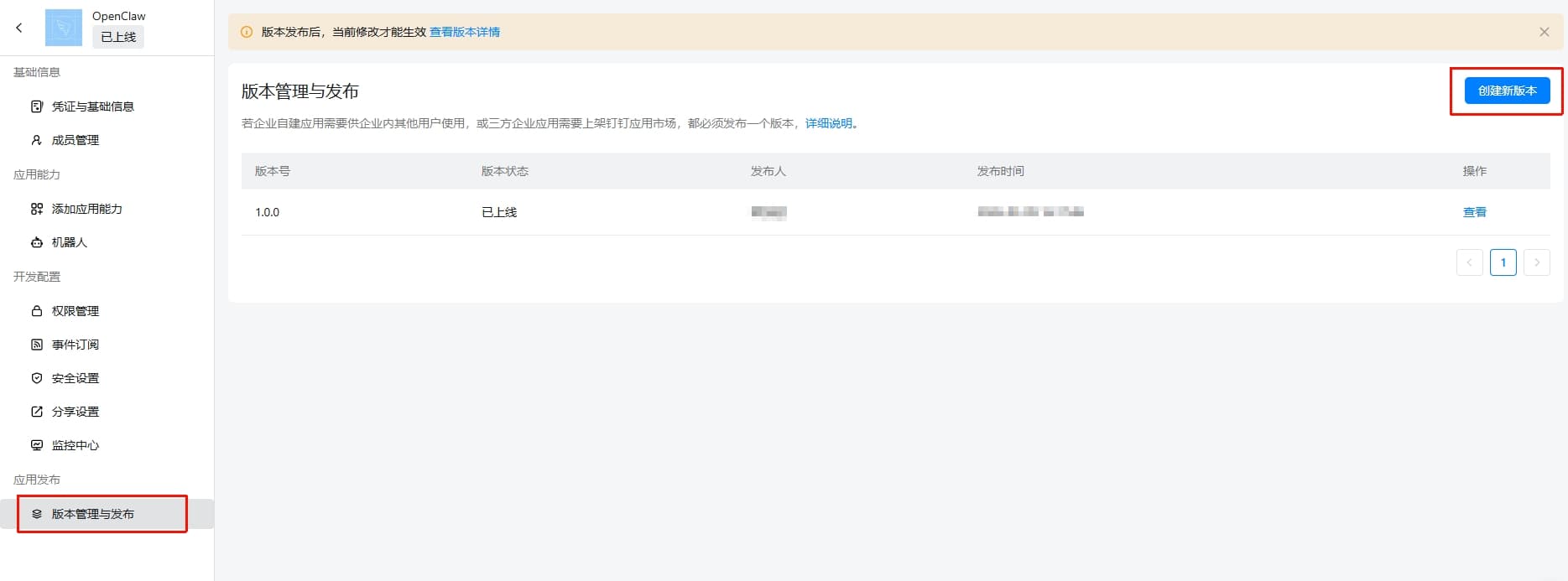

Create Version

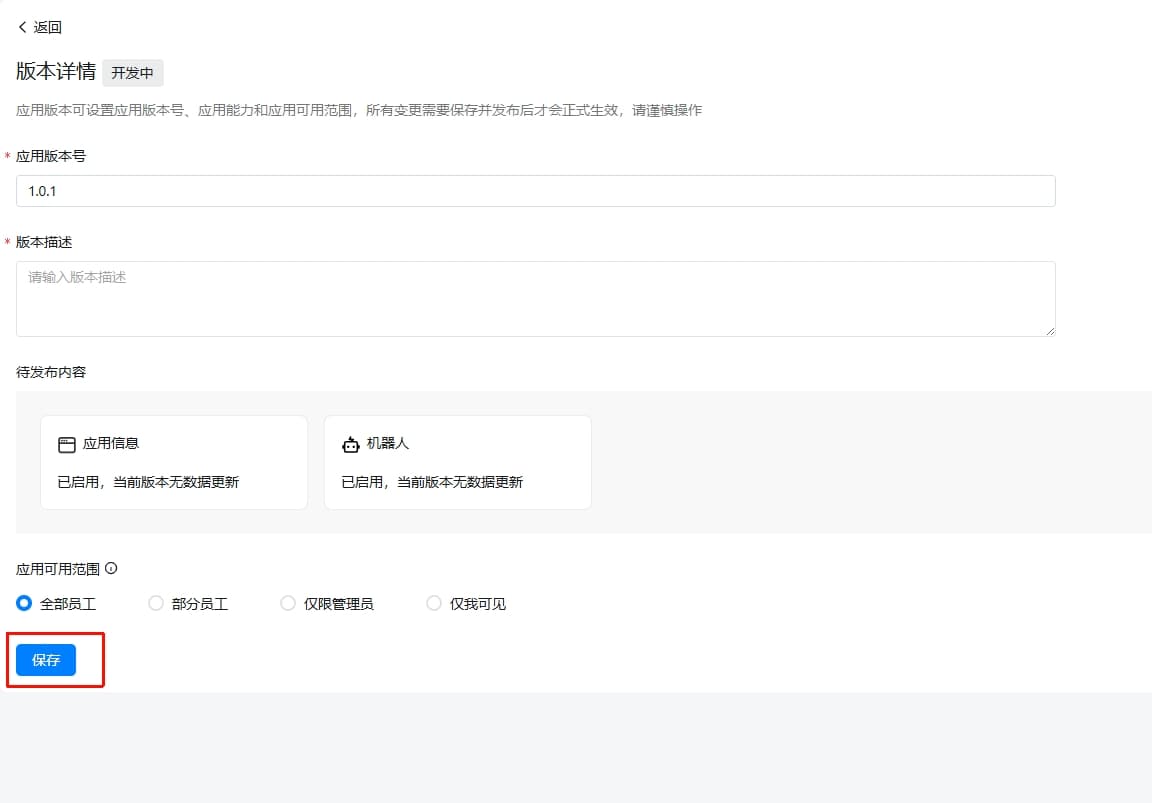

Version Information

Version Publish

6. Enable AI Card Streaming Output (Optional)

To use AI Card streaming output, you need to enable the following permissions in the DingTalk application:

Card.Instance.Write
Card.Streaming.Write

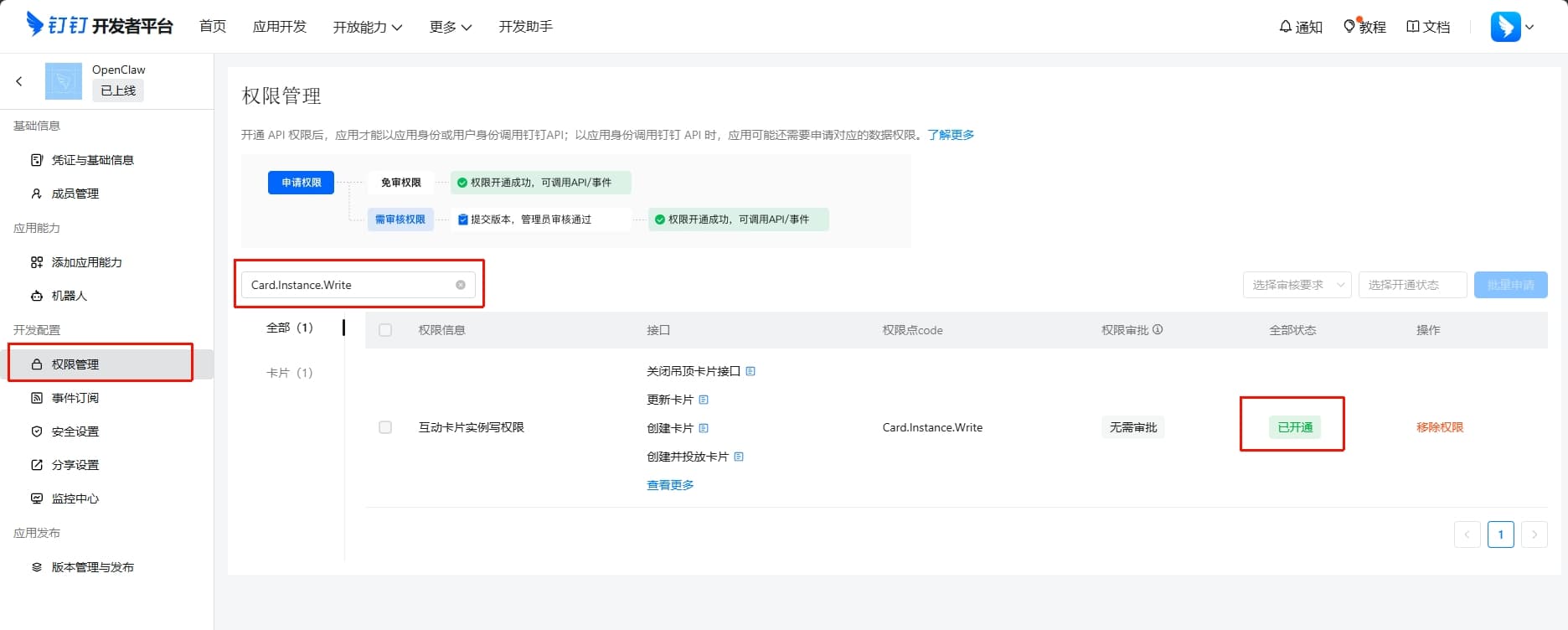

Permission Search

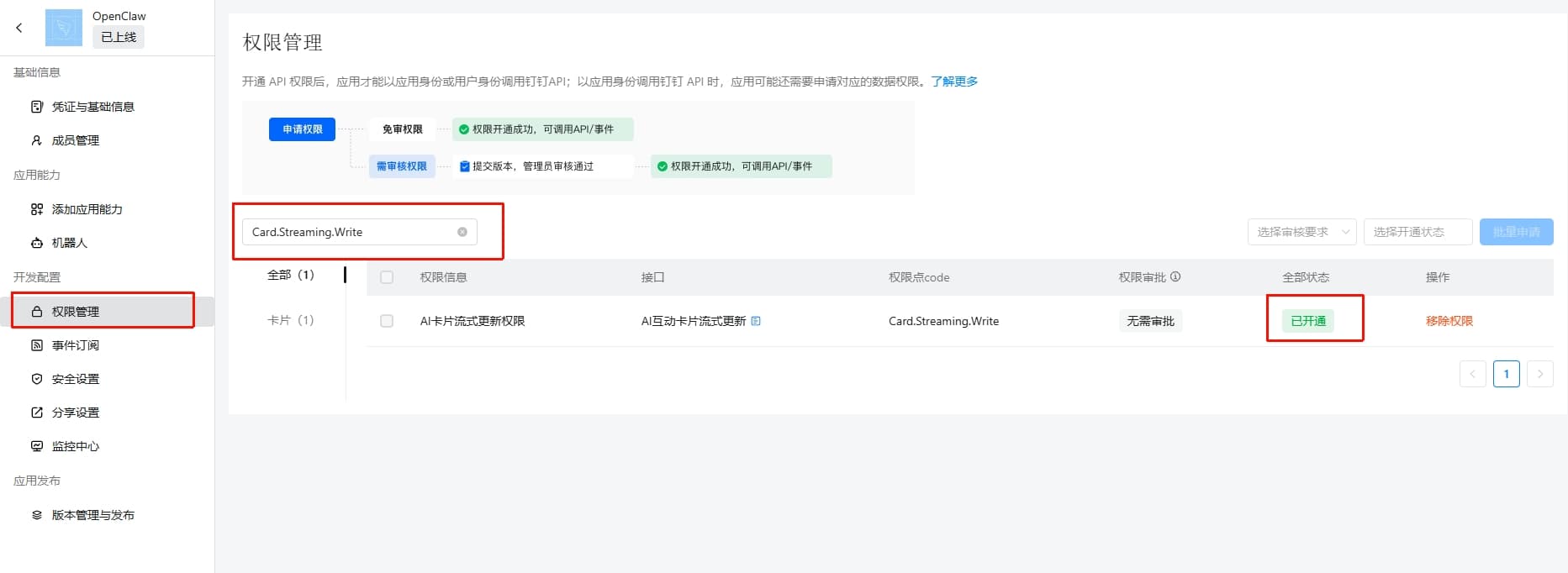

Permission Application

If permissions are not enabled or AI Card is not activated, normal conversations will still work; the system will fall back to regular messages and provide a permission application guide link in the logs.

2. Configuration and Startup

1. Configure DingTalk Channel

Recommended to use the "Configuration Wizard": openclaw china setup

openclaw config set channels.dingtalk '{
  "enabled": true,
  "clientId": "dingxxxxxx",
  "clientSecret": "your-app-secret",
  "longTaskNoticeDelayMs": 30000,
  "enableAICard": true,
  "maxFileSizeMB": 100,
  "inboundMedia": {
    "dir": "~/.openclaw/media/dingtalk/inbound",
    "keepDays": 7
  }
}' --json

Configuration Options:

Option	Type	Default	Description
enabled	boolean	true	Whether to enable DingTalk channel
defaultAccount	string	`"default"` / first account	Default account ID
clientId	string	-	DingTalk application AppKey
clientSecret	string	-	DingTalk application AppSecret
dmPolicy	string	"open"	Direct message policy: open/pairing/allowlist
groupPolicy	string	"open"	Group chat policy: open/allowlist/disabled
longTaskNoticeDelayMs	number	30000	In non-streaming regular message mode, automatically sends a notice if the first formal reply exceeds this duration; set to `0` to disable
enableAICard	boolean	true	Whether to enable AI Card streaming response
maxFileSizeMB	number	100	Media file size limit (MB)
inboundMedia.dir	string	`~/.openclaw/media/dingtalk/inbound`	Inbound media archive root directory
inboundMedia.keepDays	number	7	Inbound media retention days (cleaned up by expiration)

Inbound Media Retention Policy:

First downloaded to a temporary directory, then archived to inboundMedia.dir/YYYY-MM-DD/
After each message processing, expired files are cleaned up according to keepDays

2. Multi-Account Configuration

To configure multiple DingTalk bots, use the accounts object (key is account ID):

{
  "channels": {
    "dingtalk": {
      "enabled": true,
      "defaultAccount": "bot1",
      "groupPolicy": "open",
      "accounts": {
        "bot1": {
          "name": "Main Bot",
          "clientId": "ding-main-app-key",
          "clientSecret": "ding-main-app-secret",
          "enableAICard": true
        },
        "bot2": {
          "name": "Backup Bot",
          "clientId": "ding-backup-app-key",
          "clientSecret": "ding-backup-app-secret",
          "enableAICard": false
        }
      }
    }
  }
}

Top-level configuration serves as defaults; fields with the same name within an account will override top-level configuration
If defaultAccount is not set, default is used first, otherwise the first account after sorting is used
For multi-agent routing, you can write bindings based on channel = "dingtalk" + accountId

3. OpenClaw Initialization

openclaw onboard --install-daemon

If you have already run the configuration wizard, you can skip the channel selection.

4. Start the Service

In the 302 AI Studio client, open Settings → Vibe Mode and click Update Configuration. The gateway will restart automatically, after which you can chat normally in DingTalk.
